Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence

Informasi Dasar
Place of Origin: Hebei
Nama merek: Yuntong
Sertifikasi: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Name: Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence Wire Rope: 1.2 mm to 4.0 mm
Finished: Black Oxide Rope Constructions: 7 x 7 , 7 x 19 , 1 x 19
Mesh Orientation: Horizontal , Vertical Material: Stainless Steel 304 , 316 , 316L
Mesh Shape: Rhombus , Diamond Application: Animal Enclosure , Aviary Netting , Garden Fence , Etc
Mesh Angle: 60 degree Mesh Style: X-tend Type
Menyoroti:

black oxide stainless steel garden fence

,

316L stainless steel wire rope

,

woven wire rope garden fence

Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence
Product Specifications
Attribute Value
Name Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence
Wire Rope 1.2 mm to 4.0 mm
Finished Black Oxide
Rope Constructions 7 x 7, 7 x 19, 1 x 19
Mesh Orientation Horizontal, Vertical
Material Stainless Steel 304, 316, 316L
Mesh Shape Rhombus, Diamond
Application Animal Enclosure, Aviary Netting, Garden Fence, Etc
Mesh Angle 60 degree
Mesh Style X-tend Type
Wire Rope Mesh Specifications
Hole Size (Opening) 1.2MM(3/64) (7 x 7) 1.6MM(1/16) (7 x 7) 2.0MM(5/64) (7 x 7) 2.4MM(3/32) (7 x 7) 3.2MM(1/8) (7 x 19)
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120
Material Composition
Material Composition (%)
SS304 C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035
SS316 C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0
Product Description

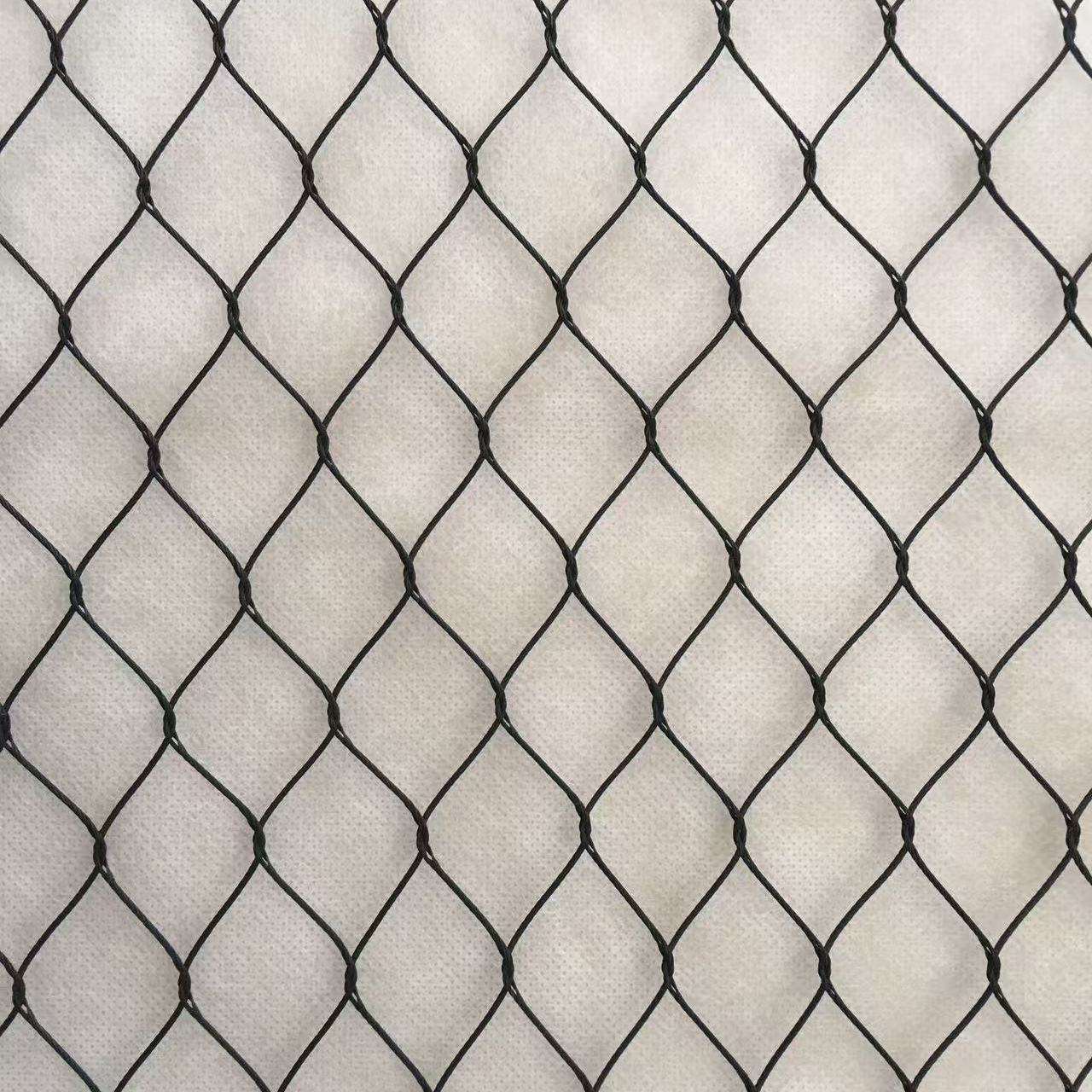

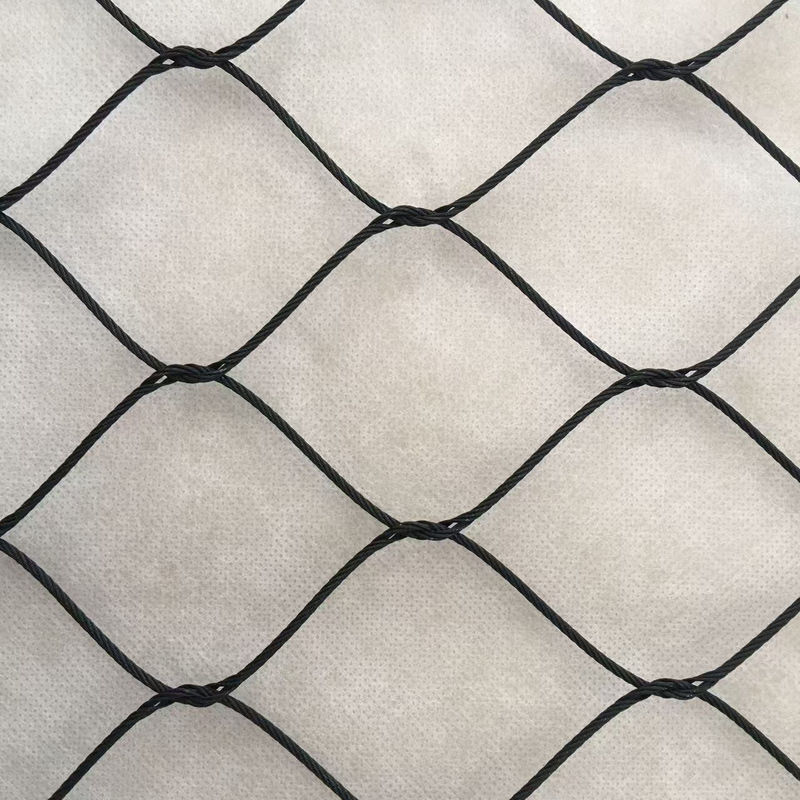

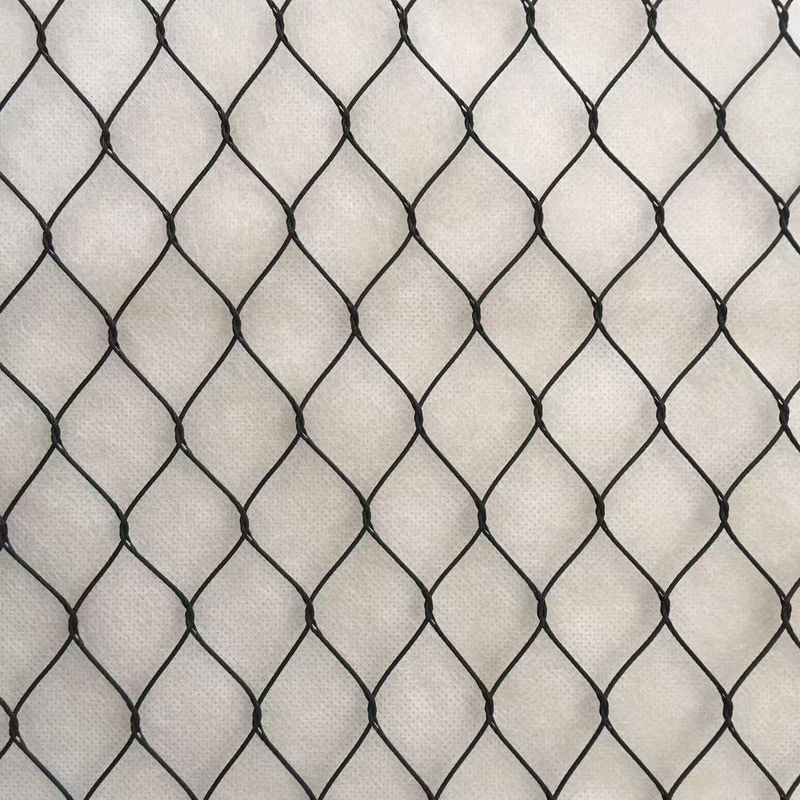

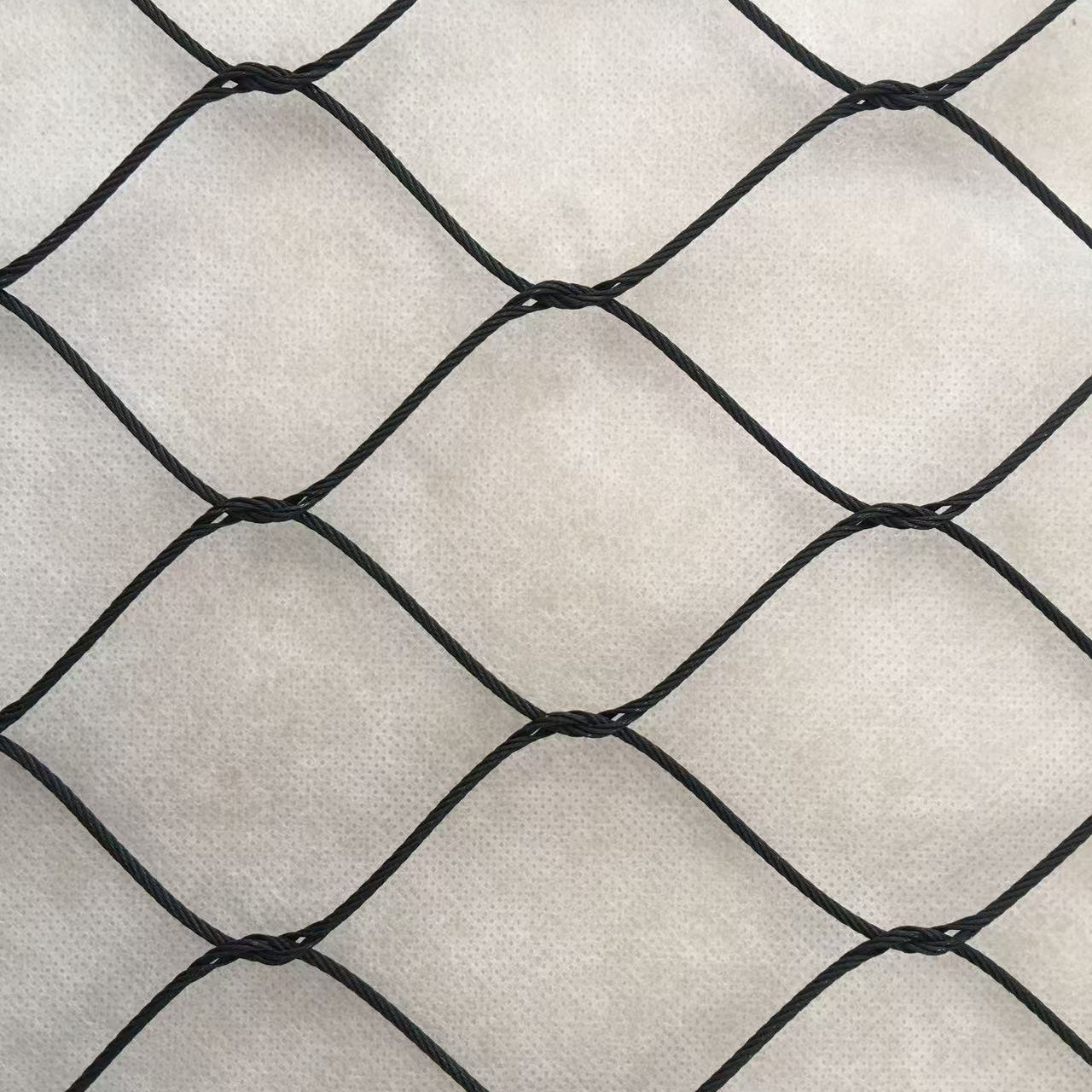

Black Oxide Wire Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L. The mesh is custom manufactured to suit your balustrade, railing or architectural application. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design. Diagonal and irregular shapes can also be supplied.

Wire Rope Mesh by Yuntong is made from stainless steel wires and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical shapes.

Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND - the mesh can even stand up to heavy loads.

Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence 0 Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence 1
